4(b) Visual Statistical Analysis

[Hands On Exercise 4b]

Author

FirGhaz

Published

February 2, 2024

4.1 Learning Outcome

The learning outcomes for this exercise are:

-ggstatsplot package to create visual graphics with rich statistical information,

-performance package to visualise model diagnostics, and

=parameters package to visualise model parameters

4.2 Getting Started

ggstatsplot is an extension of ggplot2 package for creating graphics with details from statistical tests included in the information-rich plots themselves. To provide alternative statistical inference methods by default. To follow best practices for statistical reporting. For all statistical tests reported in the plots, the default template abides by the APA gold standard for statistical reporting. For example, here are results from a robust t-test:

4.2.1 Installing R Packages

In this exercise, ggstatsplot and tidyverse will be used.

Code
pacman::p_load(ggstatsplot, tidyverse)

4.2.2 Data Import

For this exercise, the Exam data will be imported:

Code
exam <- read_csv("data/Exam_data.csv")
Rows: 322 Columns: 7
── Column specification ────────────────────────────────────────────────────────
Delimiter: ","
chr (4): ID, CLASS, GENDER, RACE
dbl (3): ENGLISH, MATHS, SCIENCE

β„Ή Use `spec()` to retrieve the full column specification for this data.
β„Ή Specify the column types or set `show_col_types = FALSE` to quiet this message.

4.2.3 One-sample test: gghistostats() method

In the code chunk below, gghistostats() is used to to build an visual of one-sample test on English scores.

Code
set.seed(1234)
Code
gghistostats(
  data = exam,
  x = ENGLISH,
  type = "bayes",
  test.value = 60,
  xlab = "English scores"
)

4.2.4 Unpacking Bayes Factor

Default information: - statistical details - Bayes Factor - sample sizes - distribution summary

  • A Bayes factor is the ratio of the likelihood of one particular hypothesis to the likelihood of another. It can be interpreted as a measure of the strength of evidence in favor of one theory among two competing theories.

  • That’s because the Bayes factor gives us a way to evaluate the data in favor of a null hypothesis, and to use external information to do so. It tells us what the weight of the evidence is in favor of a given hypothesis.

  • When we are comparing two hypotheses, H1 (the alternate hypothesis) and H0 (the null hypothesis), the Bayes Factor is often written as B10. It can be defined mathematically as

  • The Schwarz criterion is one of the easiest ways to calculate rough approximation of the Bayes Factor.

4.2.5 How to interpret Bayes Factor

A Bayes Factor can be any positive number. One of the most common interpretations is this oneβ€”first proposed by Harold Jeffereys (1961) and slightly modified by Lee and Wagenmakers in 2013:

4.2.6 Two means sample test:ggbetweenstats()

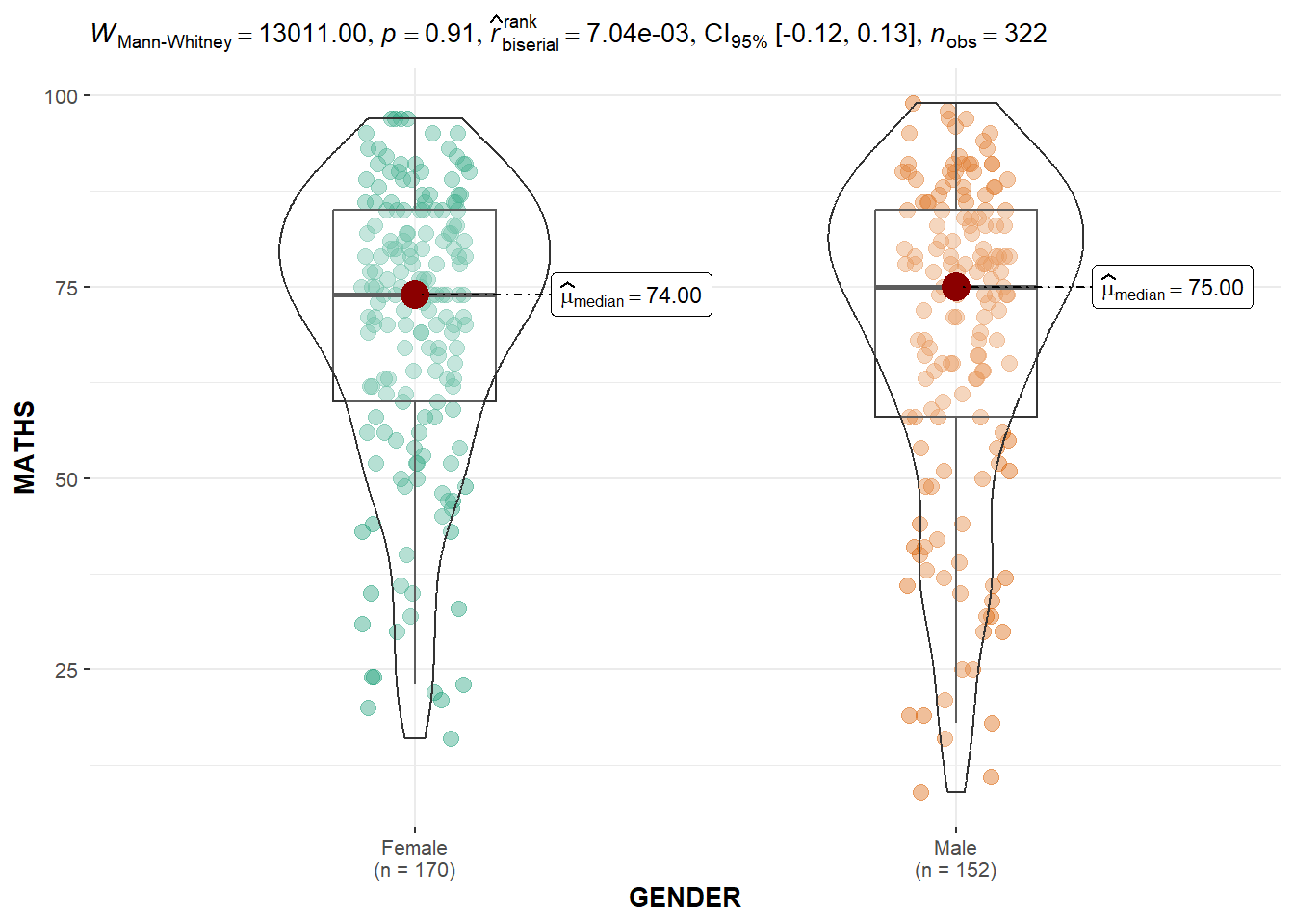

In the code chunk below, ggbetweenstats() is used to build a visual for two-sample mean test of Maths scores by gender.

Code
ggbetweenstats(
  data = exam,
  x = GENDER,
  y = MATHS,
  type = "np",
  messages = FALSE
)
Warning in min(x): no non-missing arguments to min; returning Inf
Warning in max(x): no non-missing arguments to max; returning -Inf

Default information: - statistical details - Bayes Factor - sample sizes - distribution summary

4.2.7 One way ANOVA Test: ggbetweenstats()

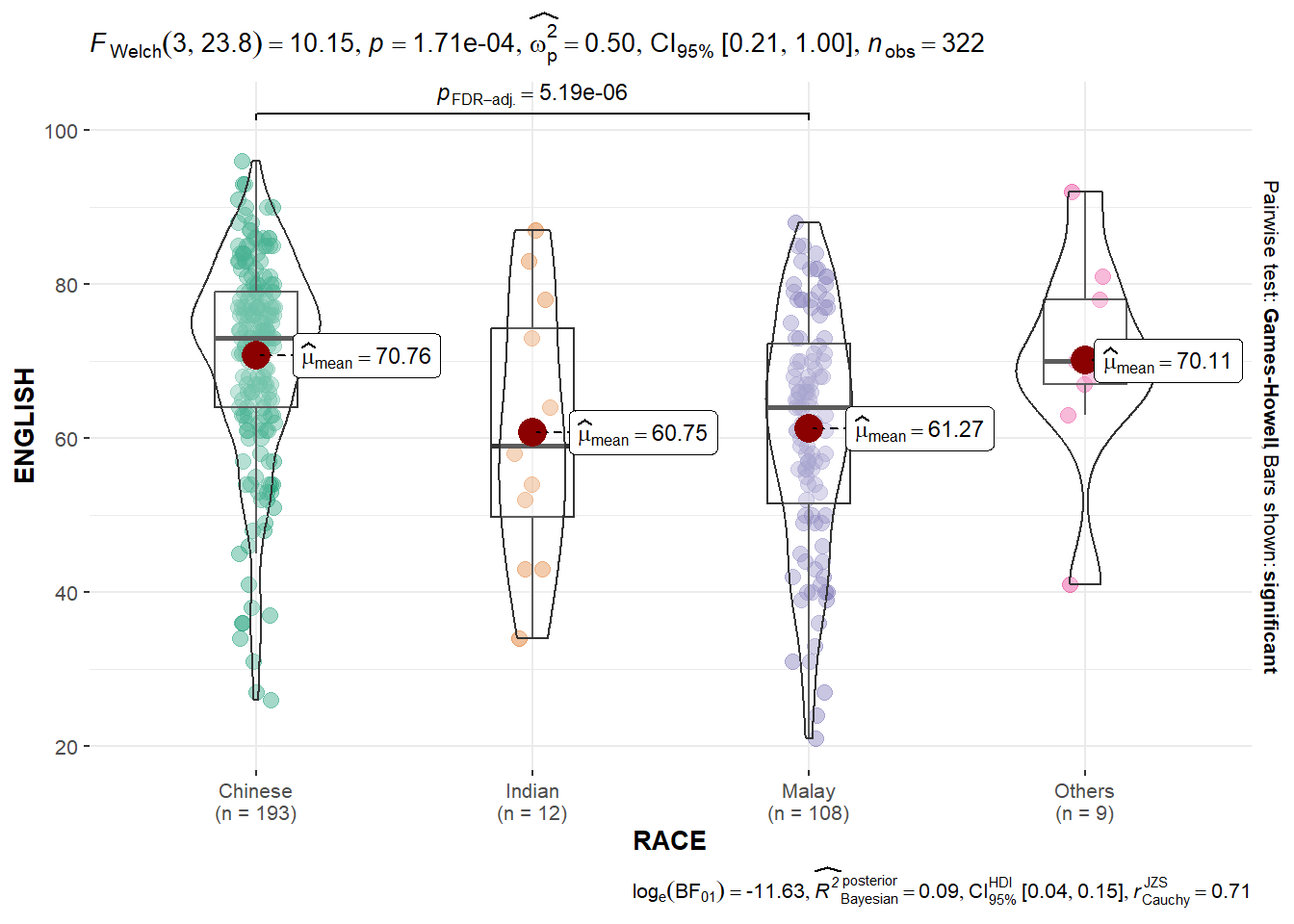

In the code chunk below, ggbetweenstats() is used to build a visual for One-way ANOVA test on English score by race.

Code
ggbetweenstats(
  data = exam,
  x = RACE,
  y = ENGLISH,
  type = "p",
  mean.ci = TRUE,
  pairwise.comparisons = TRUE,
  pairwise.display = "s",
  p.adjust.method = "fdr",
  messages = FALSE
)
Warning in min(x): no non-missing arguments to min; returning Inf
Warning in max(x): no non-missing arguments to max; returning -Inf

-β€œns” β†’ only non-significant -β€œs” β†’ only significant -β€œall” β†’ everything

4.2.7.1 Summary of Stats

4.2.8 Significant Test of Correlation: ggscatterstats()

In the code chunk below, ggscatterstats() is used to build a visual for Significant Test of Correlation between Maths scores and English scores.

Code
ggscatterstats(
  data = exam,
  x = MATHS,
  y = ENGLISH,
  marginal = FALSE,
  )

4.2.9 Significant Test of Association (Depedence) : ggbarstats() methods

In the code chunk below, the Maths scores is binned into a 4-class variable by using cut()

Code
exam1 <- exam %>%
  mutate(MATHS_bins =
           cut(MATHS,
               breaks = c(0,60,75,85,100))
)

In this code chunk below ggbarstats() is used to build a visual for Significant Test of Association

Code
ggbarstats(exam1,
           x = MATHS_bins,
           y = GENDER)

4.3 Visualising Models

In this section, you will learn how to visualise model diagnostic and model parameters by using parameters package.

-Toyota Corolla case study will be used. The purpose of study is to build a model to discover factors affecting prices of used-cars by taking into consideration a set of explanatory variables.

4.4 Getting Started

Installing and importing

Code
pacman::p_load(readxl, performance, parameters, see)

In the code chunk below, read_xls() of readxl package is used to import the data worksheet of ToyotaCorolla.xls workbook into R.

Code
car_resale <- read_xls("data/ToyotaCorolla.xls",
                       "data")
car_resale
# A tibble: 1,436 Γ— 38
      Id Model    Price Age_08_04 Mfg_Month Mfg_Year     KM Quarterly_Tax Weight
   <dbl> <chr>    <dbl>     <dbl>     <dbl>    <dbl>  <dbl>         <dbl>  <dbl>
 1    81 TOYOTA … 18950        25         8     2002  20019           100   1180
 2     1 TOYOTA … 13500        23        10     2002  46986           210   1165
 3     2 TOYOTA … 13750        23        10     2002  72937           210   1165
 4     3  TOYOTA… 13950        24         9     2002  41711           210   1165
 5     4 TOYOTA … 14950        26         7     2002  48000           210   1165
 6     5 TOYOTA … 13750        30         3     2002  38500           210   1170
 7     6 TOYOTA … 12950        32         1     2002  61000           210   1170
 8     7  TOYOTA… 16900        27         6     2002  94612           210   1245
 9     8 TOYOTA … 18600        30         3     2002  75889           210   1245
10    44 TOYOTA … 16950        27         6     2002 110404           234   1255
# β„Ή 1,426 more rows
# β„Ή 29 more variables: Guarantee_Period <dbl>, HP_Bin <chr>, CC_bin <chr>,
#   Doors <dbl>, Gears <dbl>, Cylinders <dbl>, Fuel_Type <chr>, Color <chr>,
#   Met_Color <dbl>, Automatic <dbl>, Mfr_Guarantee <dbl>,
#   BOVAG_Guarantee <dbl>, ABS <dbl>, Airbag_1 <dbl>, Airbag_2 <dbl>,
#   Airco <dbl>, Automatic_airco <dbl>, Boardcomputer <dbl>, CD_Player <dbl>,
#   Central_Lock <dbl>, Powered_Windows <dbl>, Power_Steering <dbl>, …

Notice that the output object car_resale is a tibble data frame.

4.4.1 Multilple Regression Model using lm()

The code chunk below is used to calibrate a multiple linear regression model by using lm() of Base Stats of R.

Code
model <- lm(Price ~ Age_08_04 + Mfg_Year + KM +
              Weight + Guarantee_Period, data = car_resale)
model

Call:
lm(formula = Price ~ Age_08_04 + Mfg_Year + KM + Weight + Guarantee_Period,
    data = car_resale)

Coefficients:
     (Intercept)         Age_08_04          Mfg_Year                KM
      -2.637e+06        -1.409e+01         1.315e+03        -2.323e-02
          Weight  Guarantee_Period
       1.903e+01         2.770e+01

4.4.2 Model Diagnostic: checking for multicolinearity:

In the code chunk, check_collinearity() of [performance] (https://easystats.github.io/performance/) package.

Code
check_collinearity(model)
# Check for Multicollinearity

Low Correlation

             Term  VIF     VIF 95% CI Increased SE Tolerance Tolerance 95% CI
               KM 1.46 [ 1.37,  1.57]         1.21      0.68     [0.64, 0.73]
           Weight 1.41 [ 1.32,  1.51]         1.19      0.71     [0.66, 0.76]
 Guarantee_Period 1.04 [ 1.01,  1.17]         1.02      0.97     [0.86, 0.99]

High Correlation

      Term   VIF     VIF 95% CI Increased SE Tolerance Tolerance 95% CI
 Age_08_04 31.07 [28.08, 34.38]         5.57      0.03     [0.03, 0.04]
  Mfg_Year 31.16 [28.16, 34.48]         5.58      0.03     [0.03, 0.04]
Code
check_c <- check_collinearity(model)
plot(check_c)
Variable `Component` is not in your data frame :/

4.4.3 Model Diagnostic: checking normality assumption

In the code chunk, check_normality() of performance package.

Code
model1 <- lm(Price ~ Age_08_04 + KM +
              Weight + Guarantee_Period, data = car_resale)
Code
check_n <- check_normality(model1)
Code
plot(check_n)

4.4.4 Model Diagnostic: Check model for homogeneity of variances

In the code chunk, check_heteroscedasticity() of performance package.

Code
check_h <- check_heteroscedasticity(model1)
Code
plot(check_h)

4.4.5 Model Check Complete

We can also perform the complete by using check_model().

Code
check_model(model1)

4.4.6 Visualising Regression on Parameters: see methods

In the code below, plot() of see package and parameters() of parameters package is used to visualise the parameters of a regression model.

Code
plot(parameters(model1))

Visualising Regression Parameters: ggcoefstats() methods

In the code below, ggcoefstats() of ggstatsplot package to visualise the parameters of a regression model.

Code
ggcoefstats(model1,
            output = "plot")
